I. Overview

• Brand: YIKONG
• Model: YK4082 V3
• Scale: 1:8

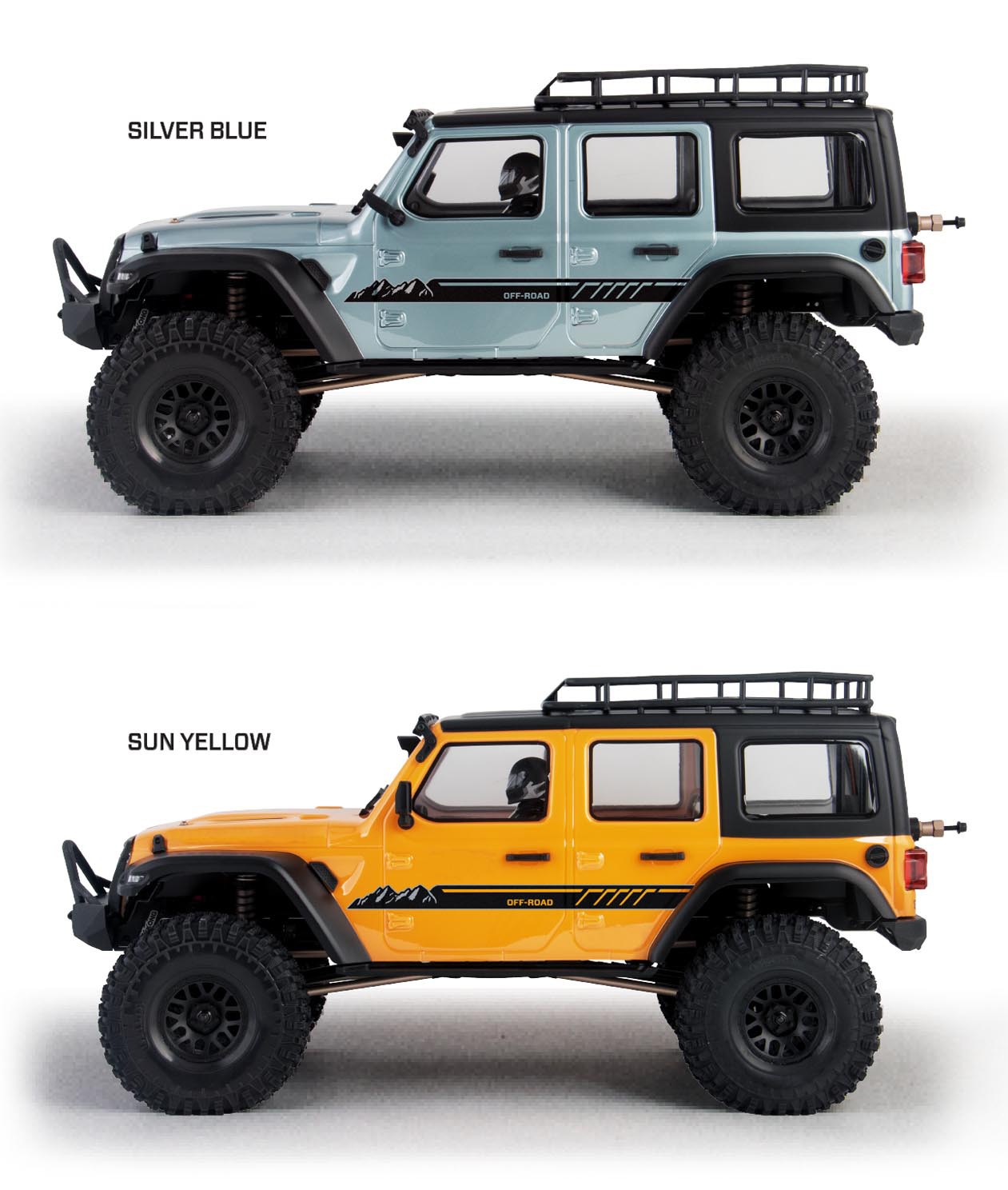

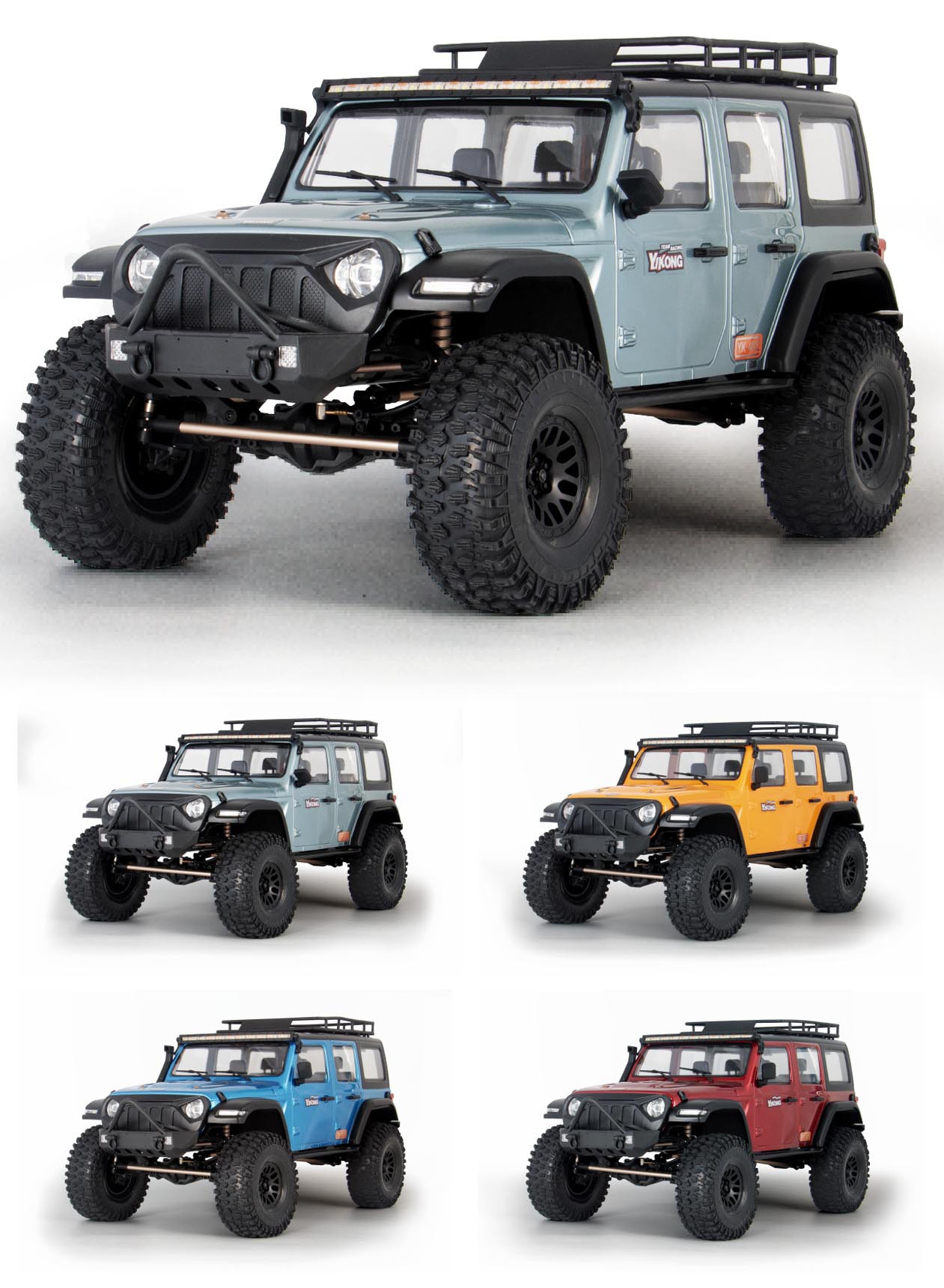

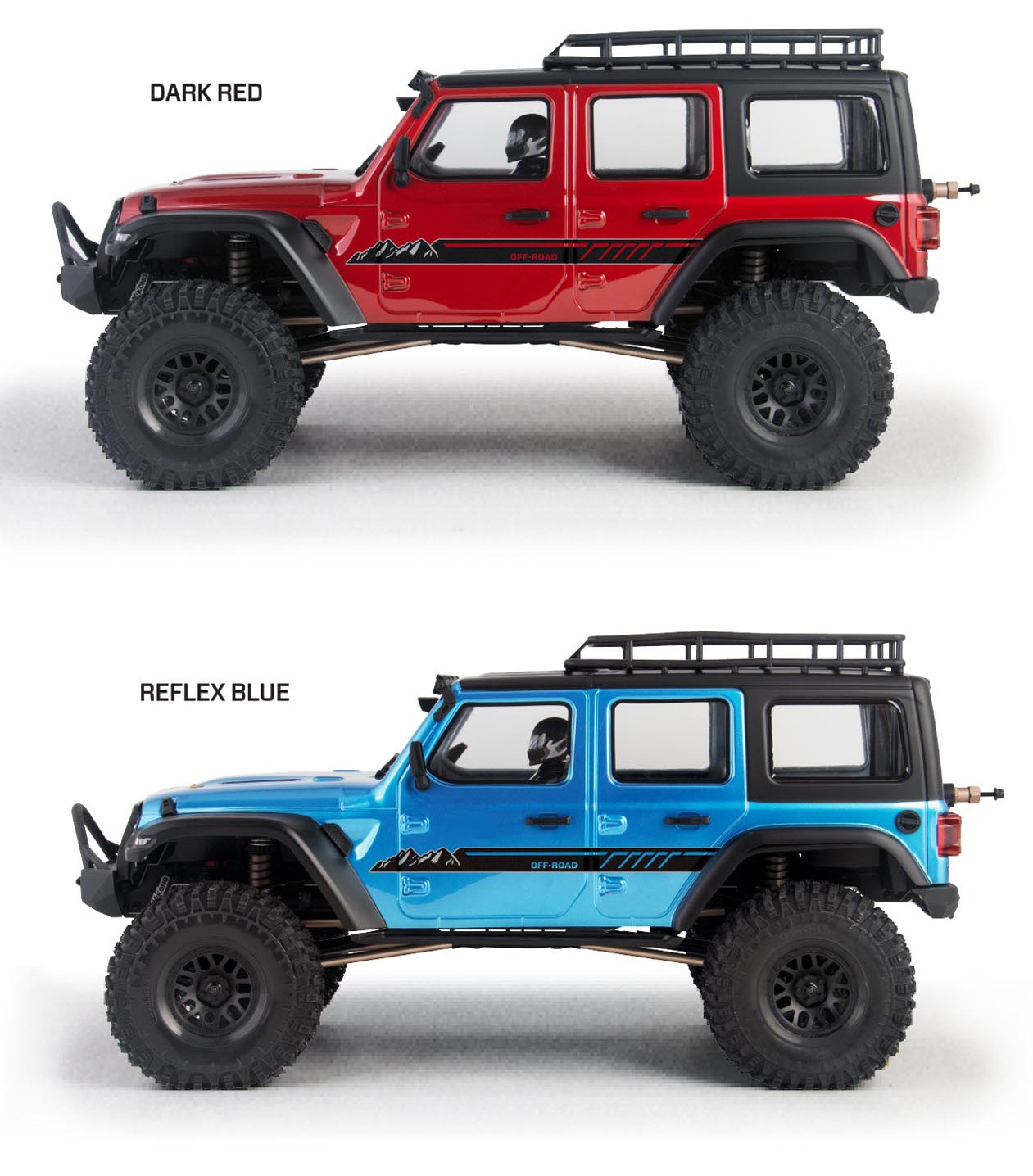

• Colors: DARK RED/REFLEX BLUE/SILVER BLUE/SUN YELLOW (including new body stickers).
• Dimensions: Length is 635mm, width is 290mm, and wheelbase is 370mm.
• Car Battery (Not Included): 2S-3S high-capacity lithium battery is recommended
• Charger (Not Included): It is recommended to balance the charger for lithium batteries.

Yikong's new model in 2024 comes with an upgraded gearbox and rear axle reverse transmission system, and is equipped with a PC body shell.

II. Upgrade Highlights

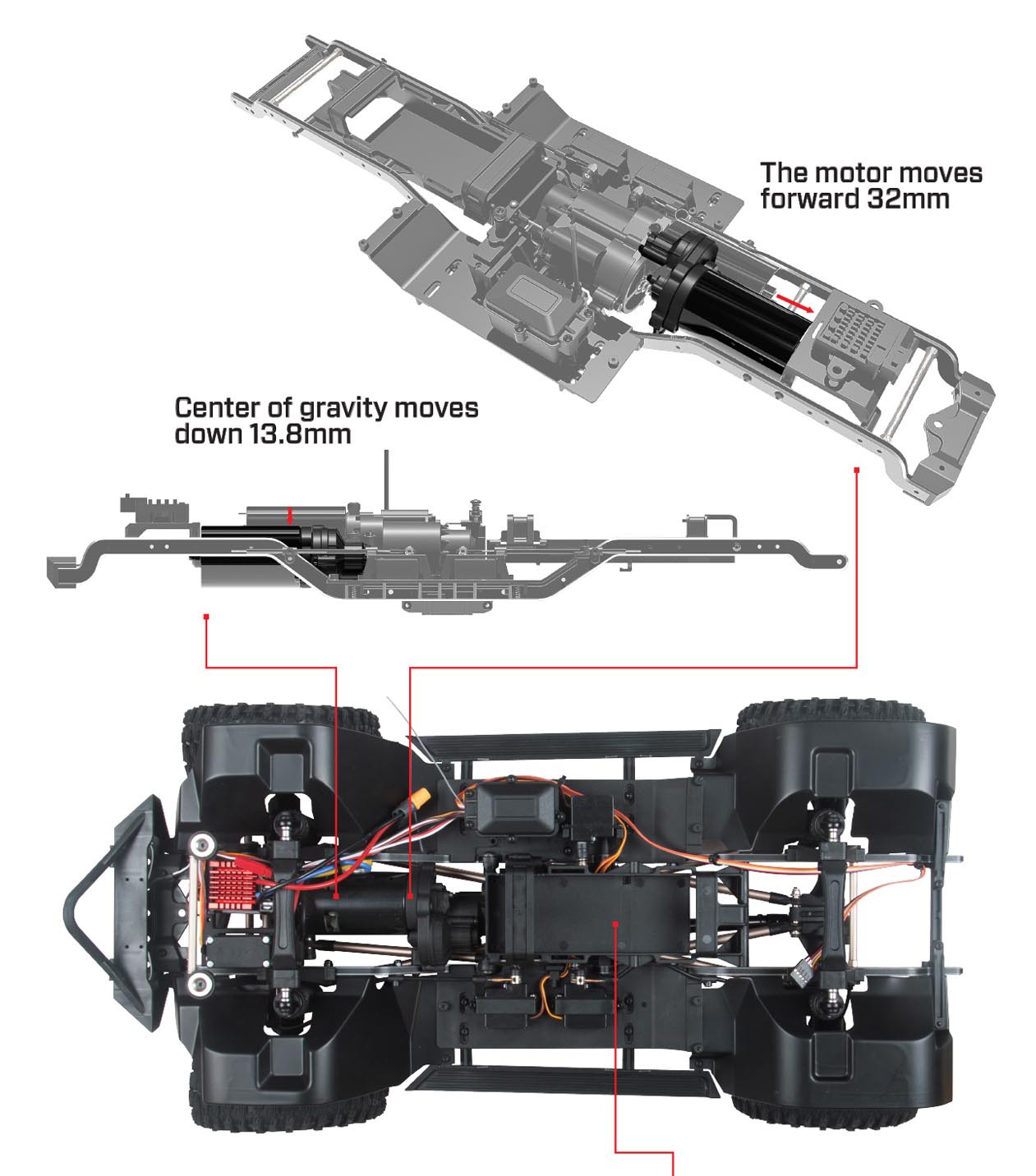

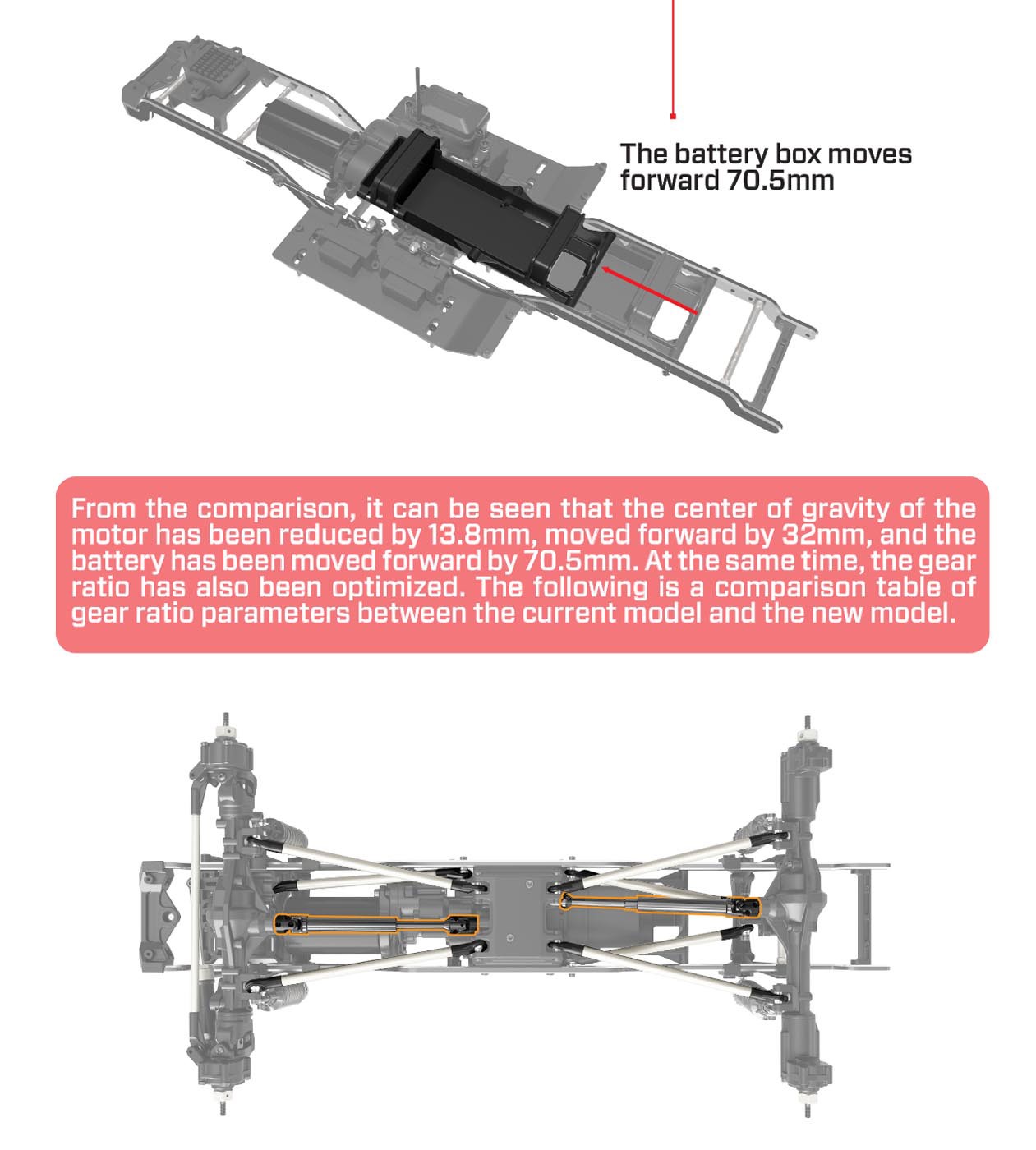

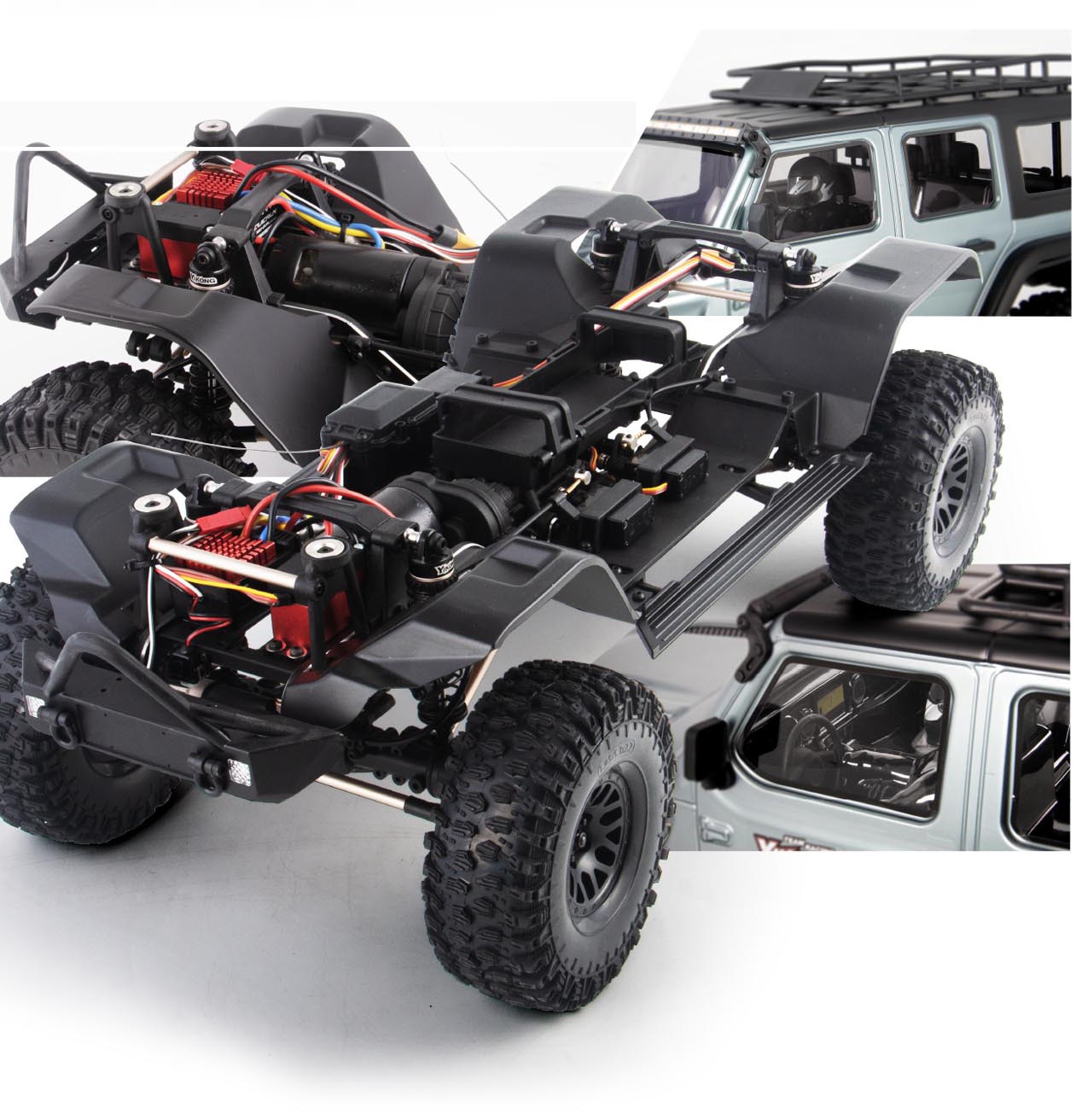

Center of gravity adjustment: The motor moves forward by 32mm, the center of gravity moves down by 13.8mm, and the battery box moves forward by 70.5mm.

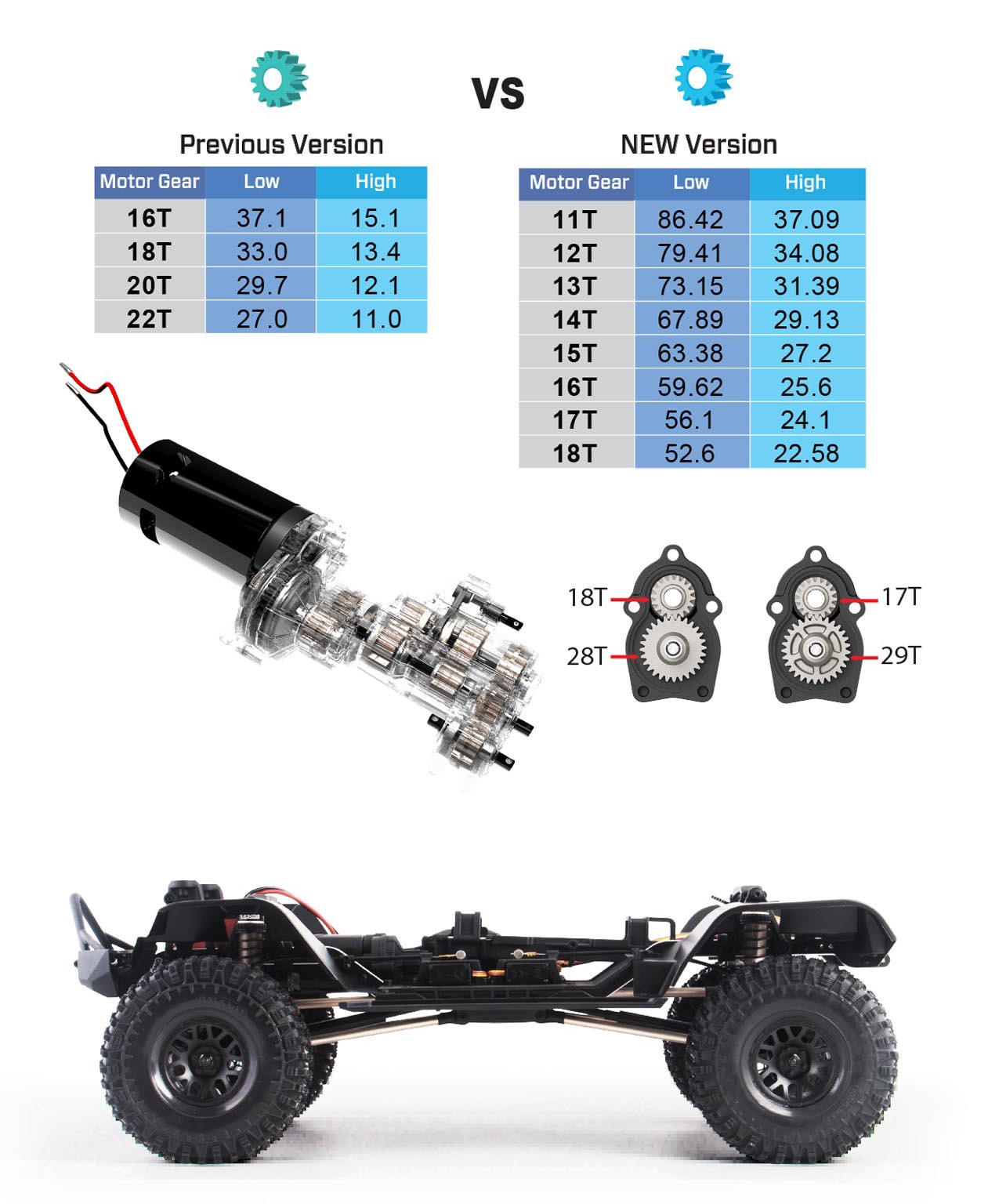

Gearbox parameter comparison: The gear ratio is optimized. As shown in the figure, the motor gear parameters and transmission ratio parameters of the current version and the new version are displayed.

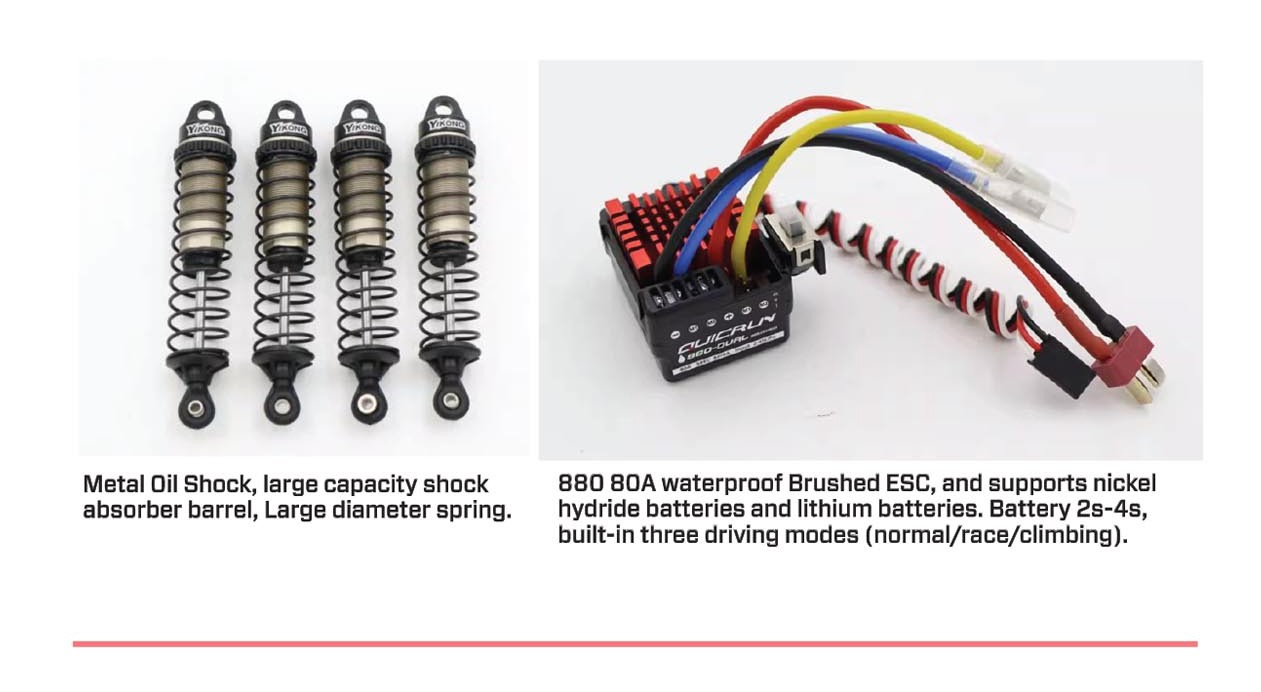

Performance accessories: Equipped with 880 80A waterproof brushed ESC, supports nickel-metal hydride batteries and lithium batteries (2s - 4s), and has three built-in driving modes (normal/race/climbing). Metal oil pressure shock absorber, large-capacity shock absorber barrel, and large-diameter spring.

III. Features of the YK4082 V3 RC Crawler

• Follows the Yk4082 frame system and performs outstandingly in terms of performance, durability, stability, and fun.
• Equipped with a new car shell and lighting system, and the exterior details are exquisitely designed.

IV. Accessories

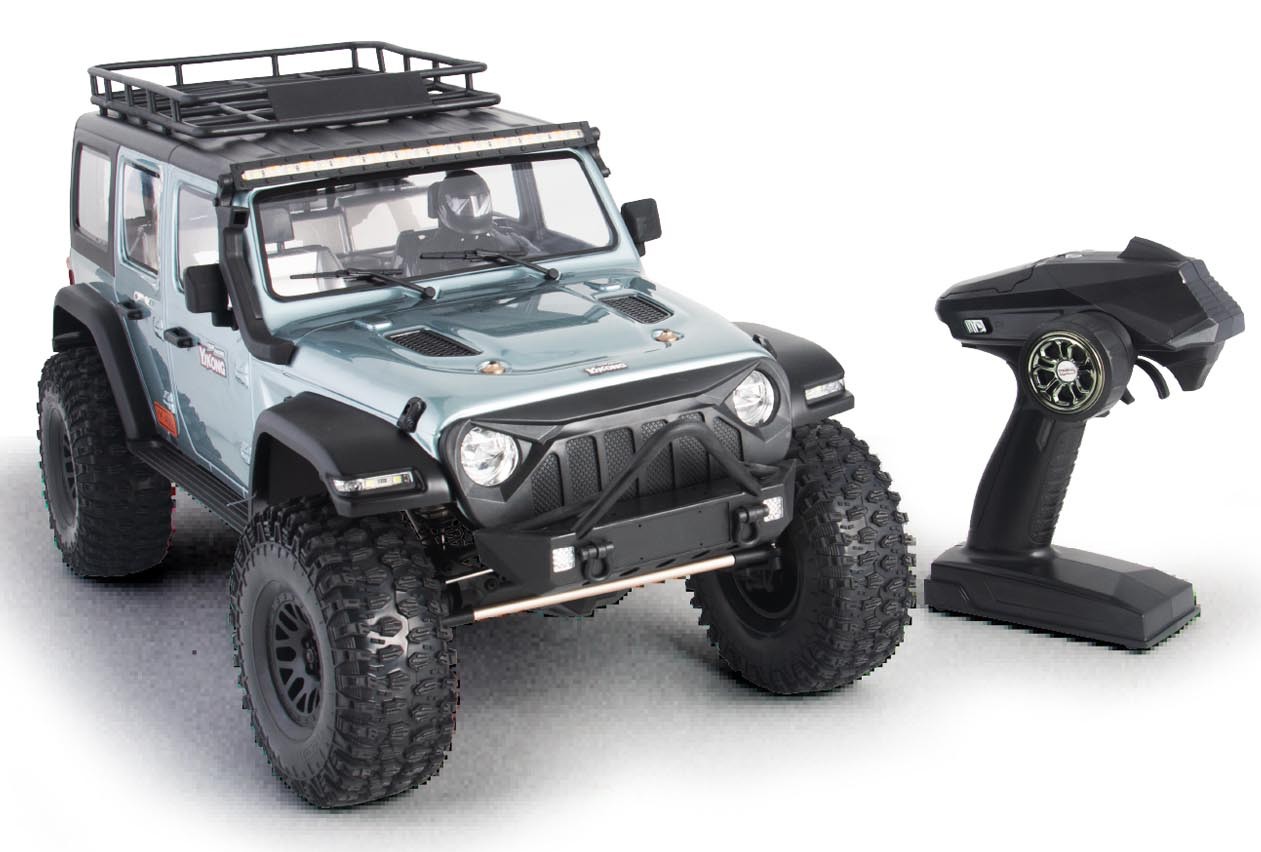

• 1X RC Car
• 1X Remote Controller
• 1X Manual
• 1X Screwdriver
