YIKONG YK4082V3/YK4083V3 RC Crawler Gear Box Set
$97.59
Gear Box Set Parts of YIKONG YK4082V3/YK4083V3 RC Crawler
The accessories of YIKONG's YK4082V3 and YK4083V3 are upgraded versions launched by Yikong. They are characterized by a new gearbox and a rear axle reverse transmission system. The center of gravity adjustment is optimized and it has strong modifiability. Different speed ratio portal axles are also added, making the vehicle more stable when going downhill.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
I. Overview of the Gear Box Set Parts
- Brand: YIKONG
- Compatible Models: YK4082V3, YK4083V3
Description: Yikong has launched upgraded versions of YK4082 and YK4083, which come with an upgraded gearbox and rear axle reverse transmission system. The new gearbox is characterized by small size, low center of gravity and a forward center of gravity.
II. Upgrade Highlights of the Gear Box Set Parts

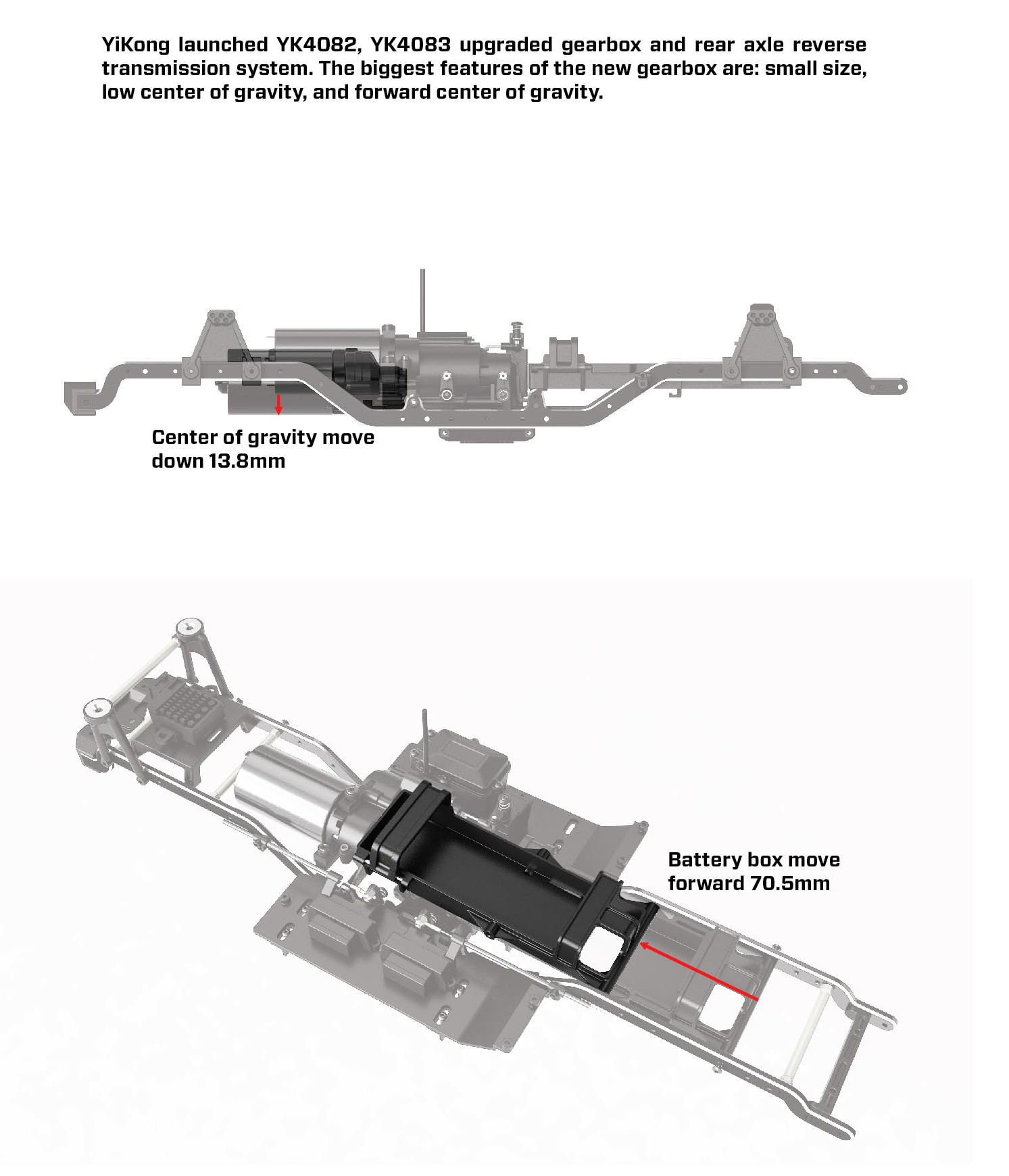

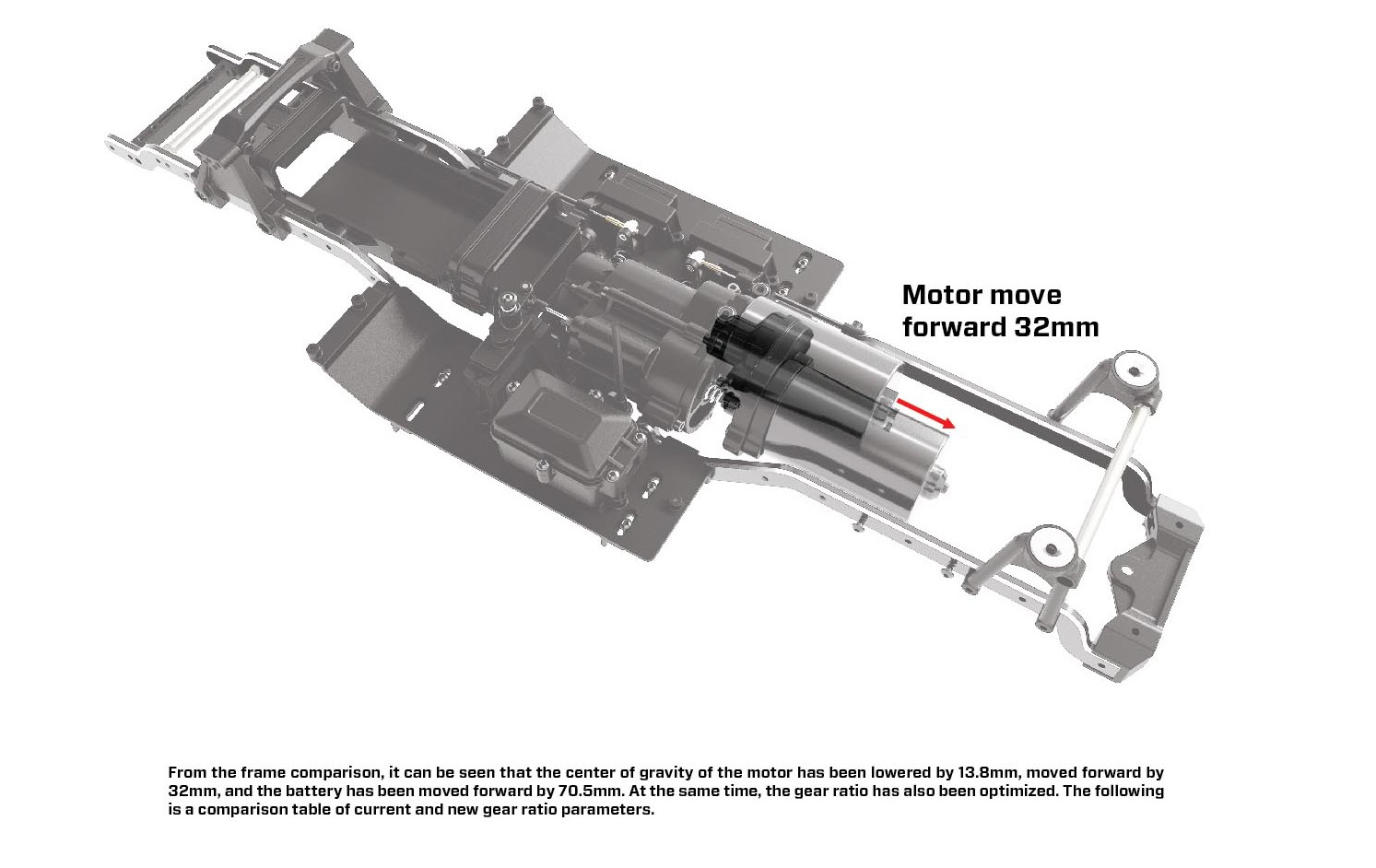

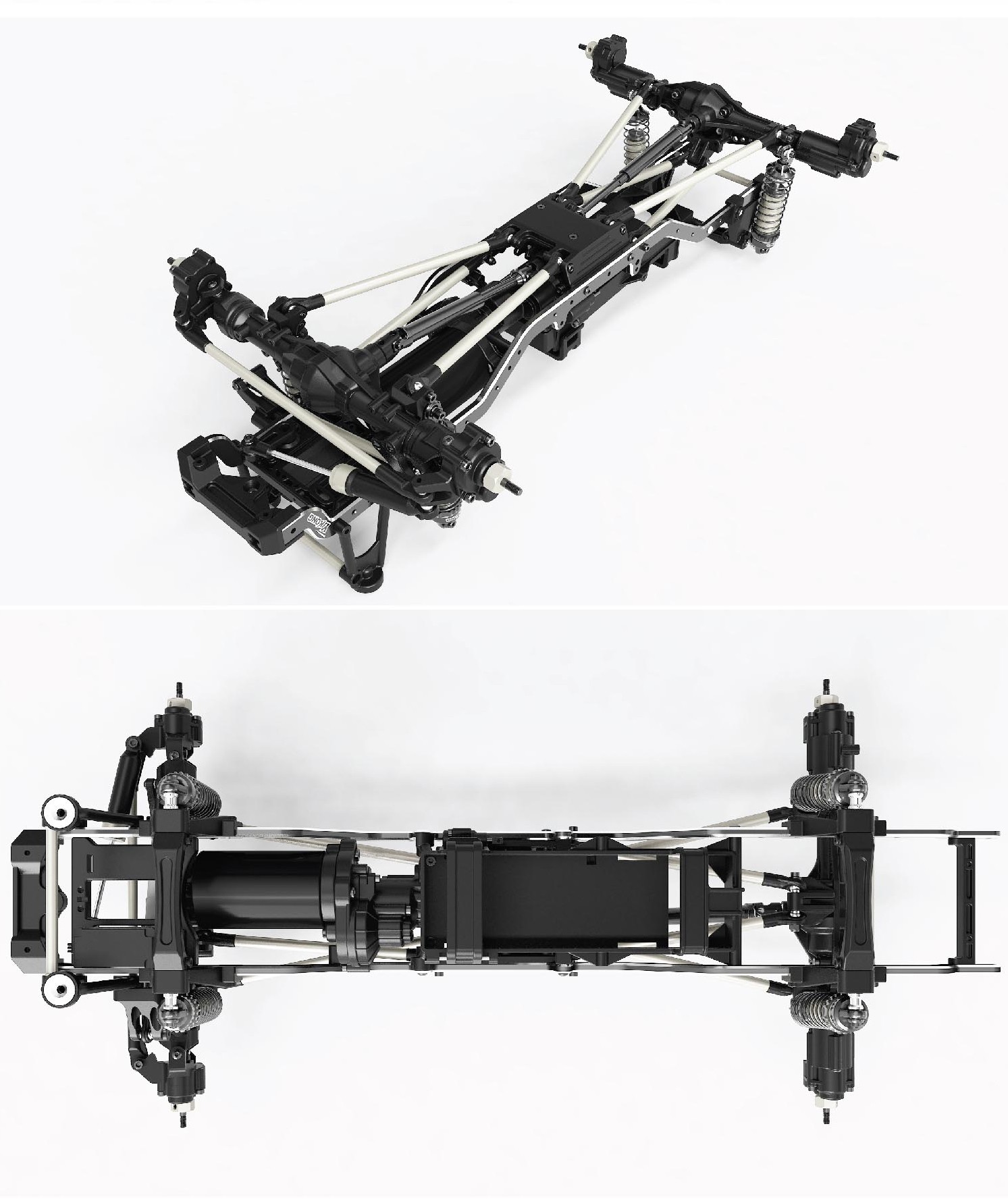

- Center of gravity adjustment: The motor moves forward by 32mm, the center of gravity moves down by 13.8mm, and the battery box moves forward by 70.5mm. At the same time, the gear ratio has been optimized.

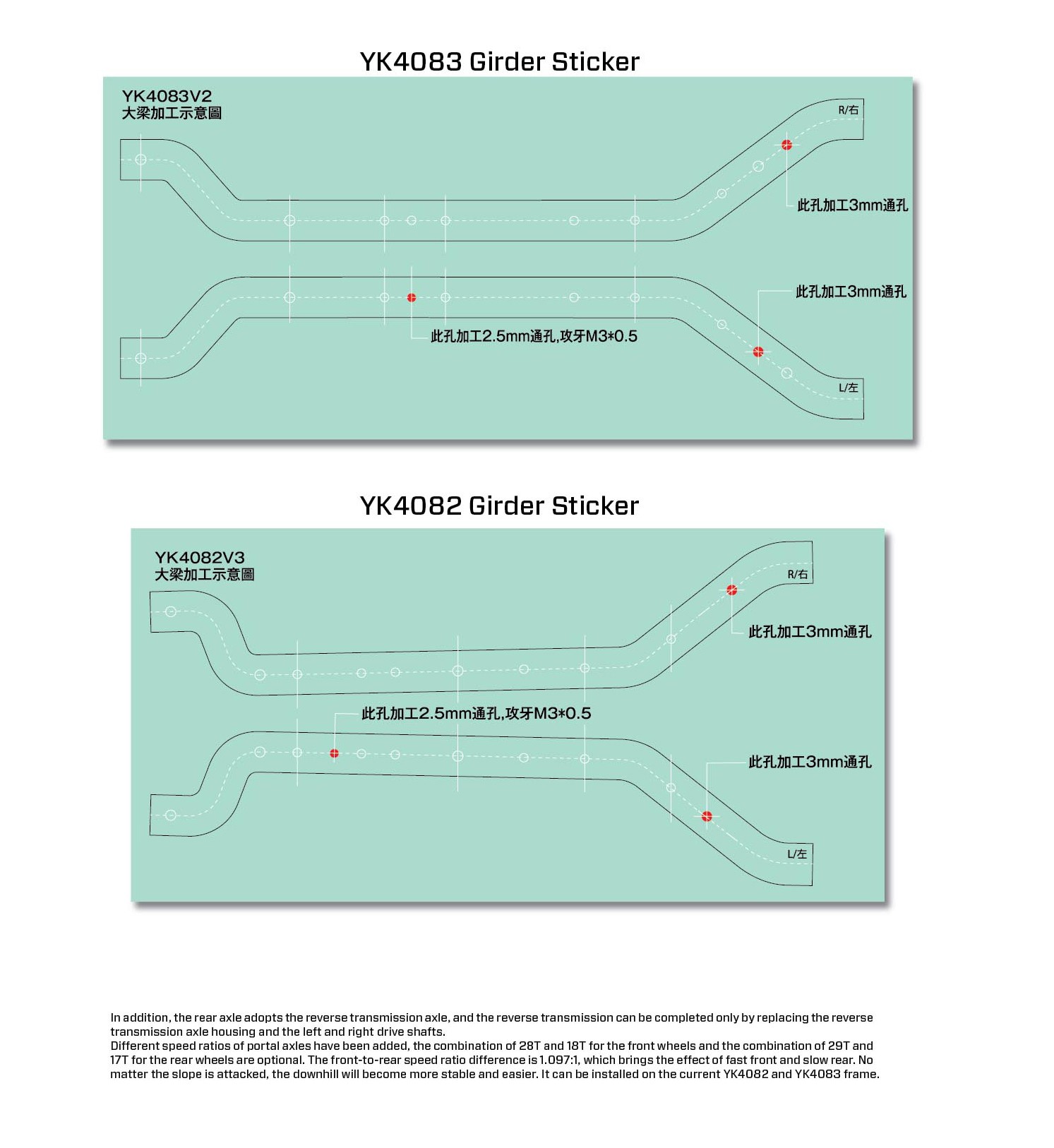

- Modification applicability: The new gearbox has a more delicate linearity and can be used to modify the current YK4082 and YK4083. Just add a few mounting holes on the girder, paste the girder sticker and punch holes at the marked positions.

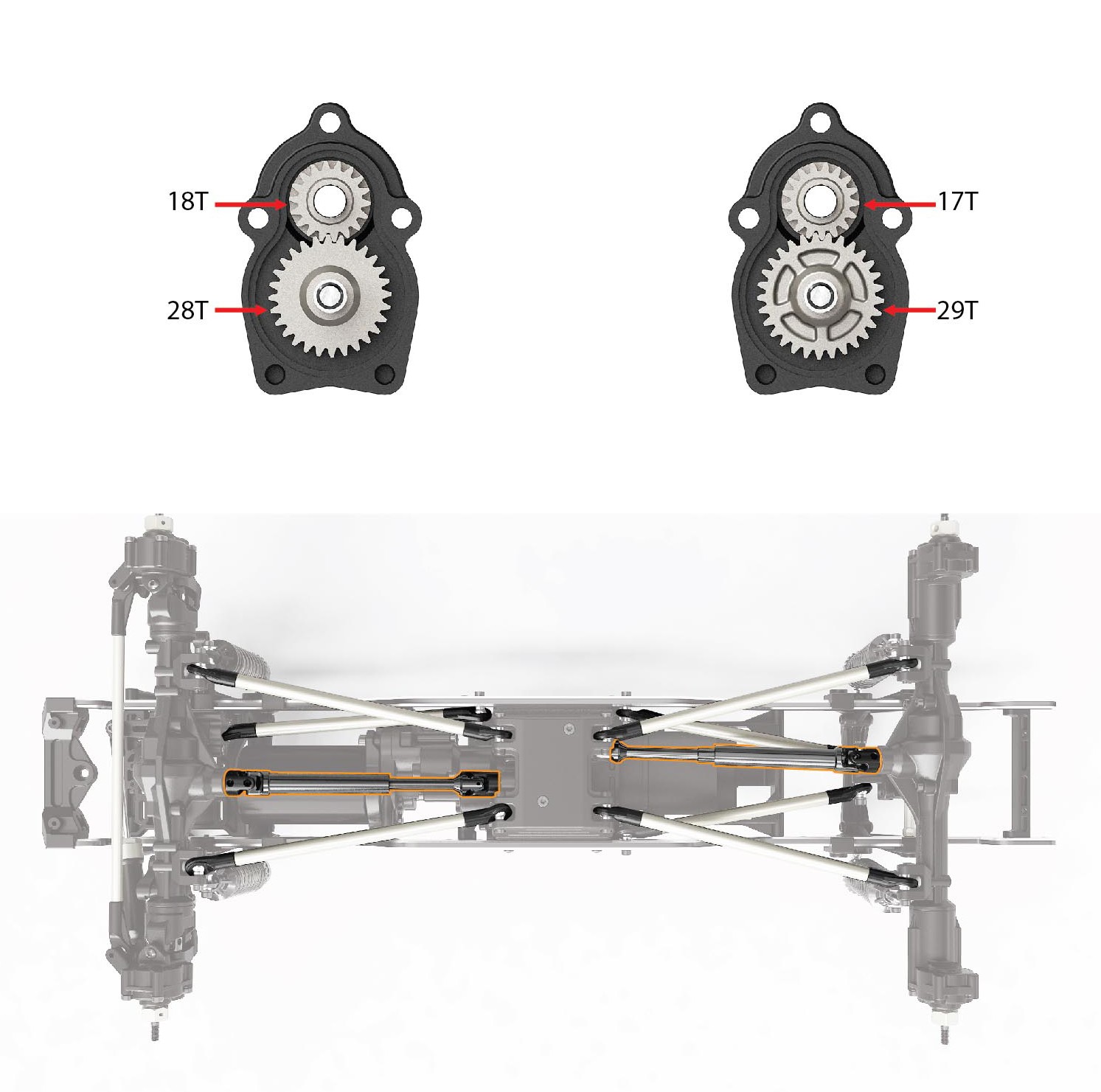

- Rear axle improvement: The rear axle adopts a reverse transmission shaft. Reverse transmission can be completed by only replacing the reverse transmission shaft housing and the left and right drive shafts. Different speed ratios of portal axles have been added. The combination of 28T and 18T for the front wheels and the combination of 29T and 17T for the rear wheels are optional, bringing the effect of faster front and slower rear, making downhill more stable and can be installed on the current YK4082 and YK4083 frames.
III. Parameter Comparison

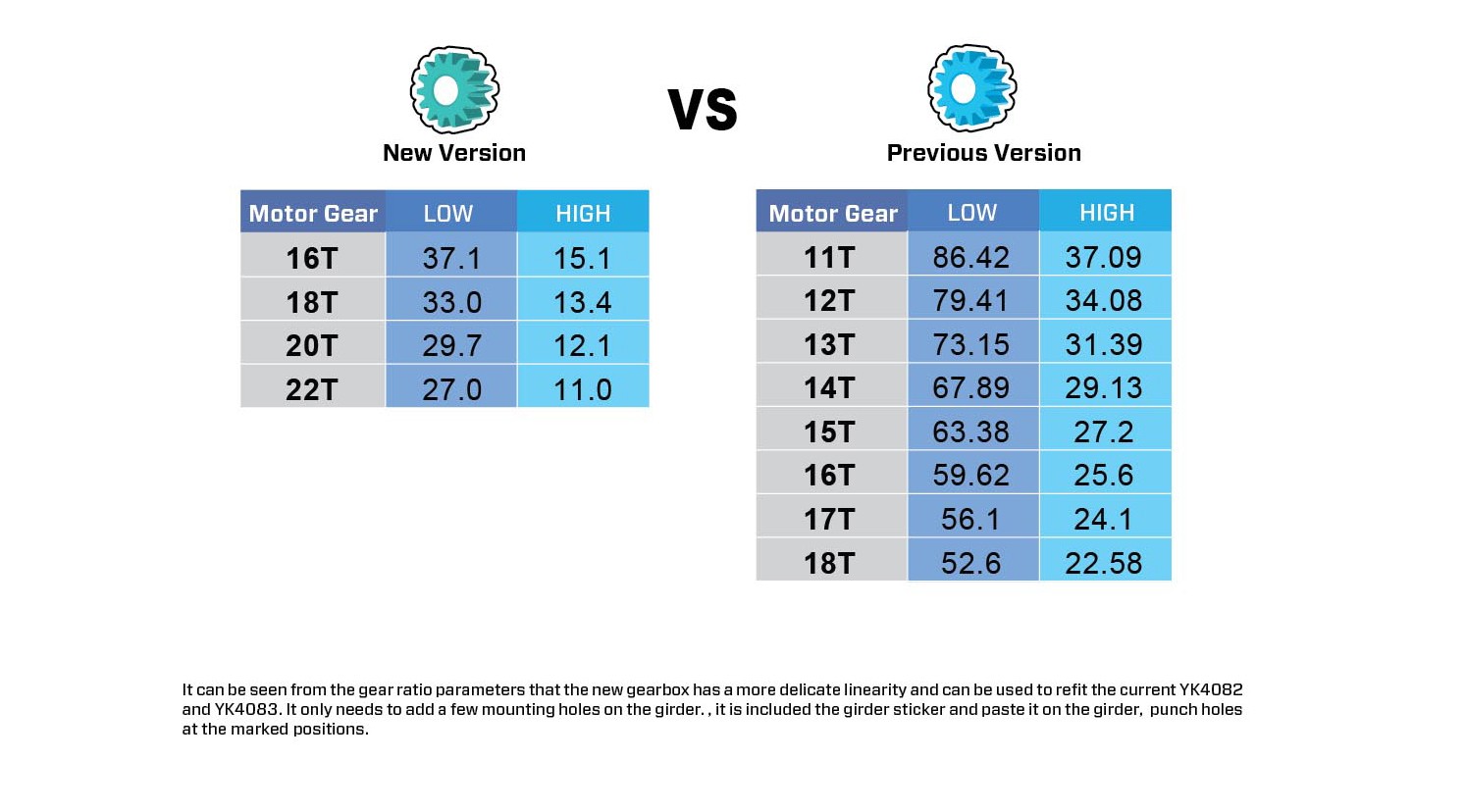

As shown in the figure, the motor gear parameters and transmission ratio parameters of the current version and the new version are displayed.

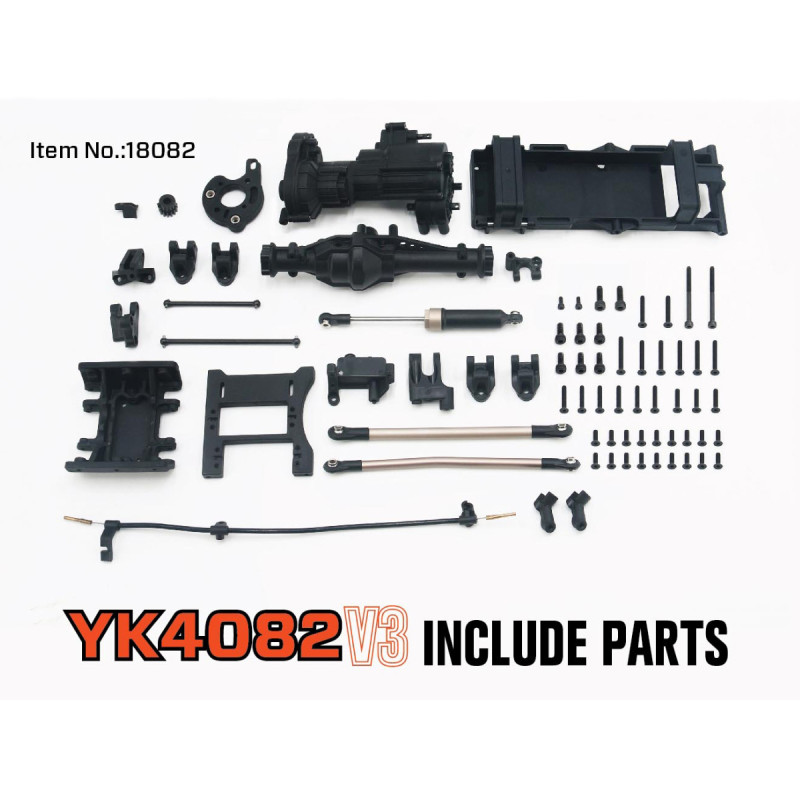

IV. Accessories

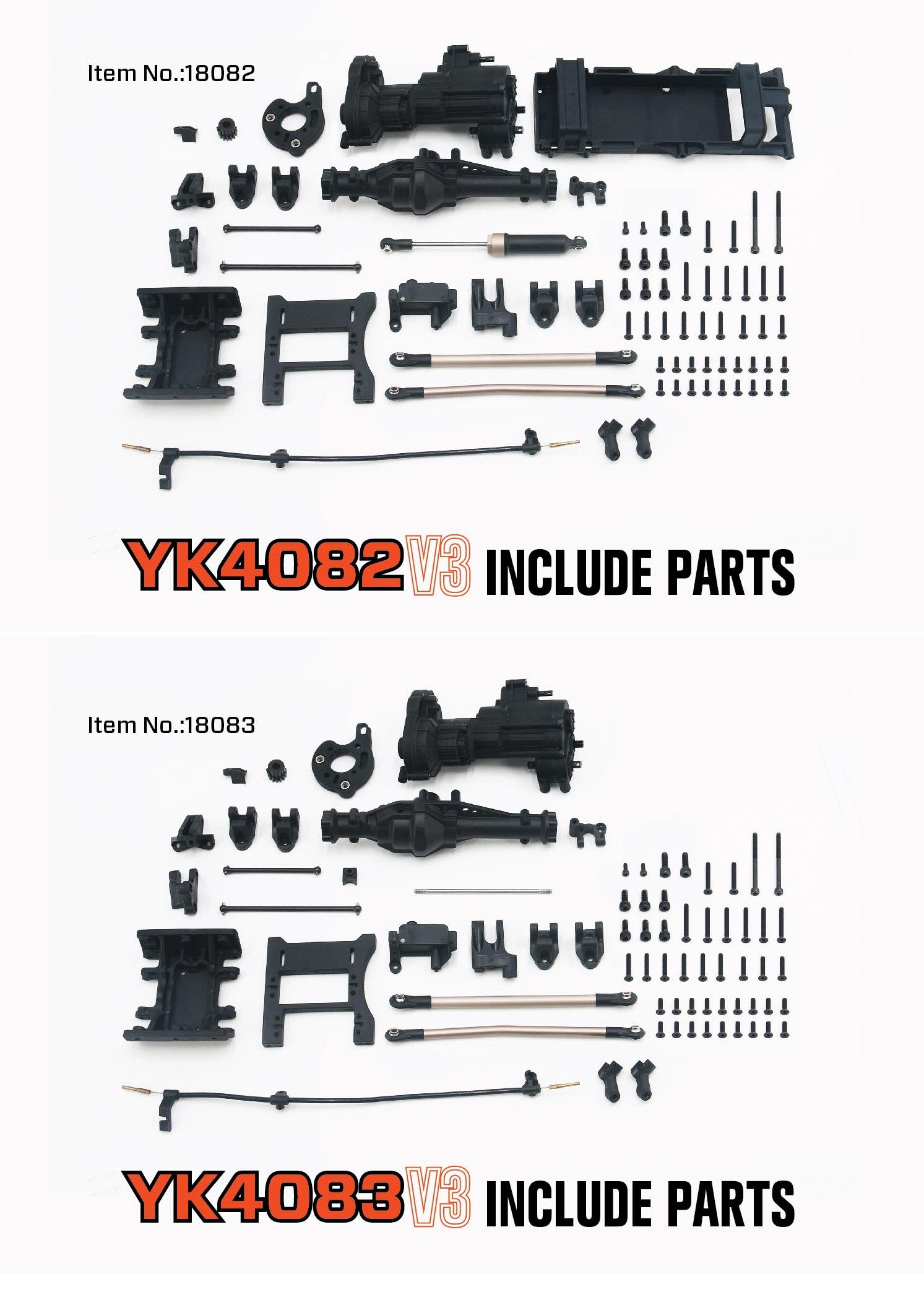

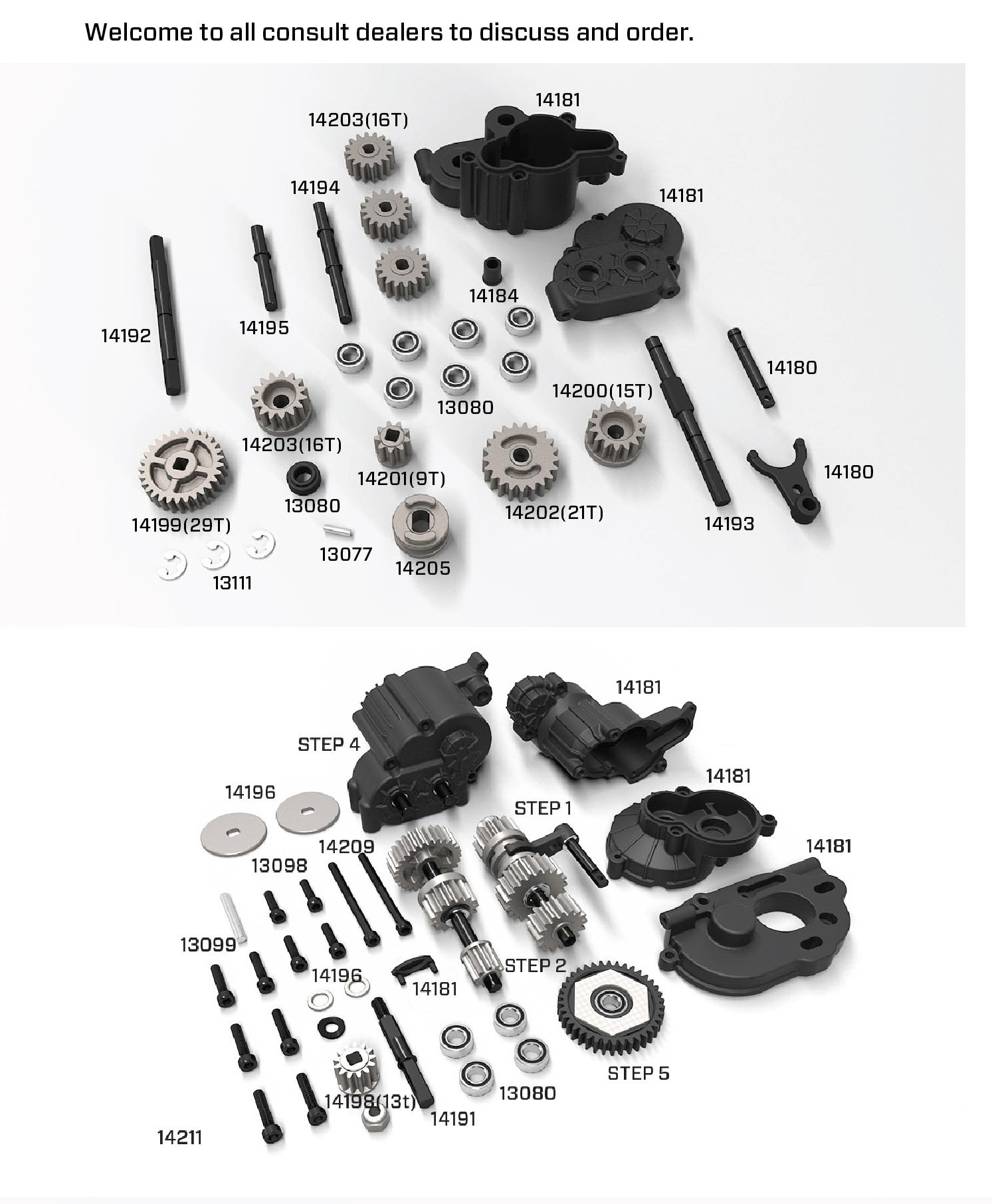

As shown in the figure, the accessories included in YK4082V3 and YK4083V3 are listed respectively.
