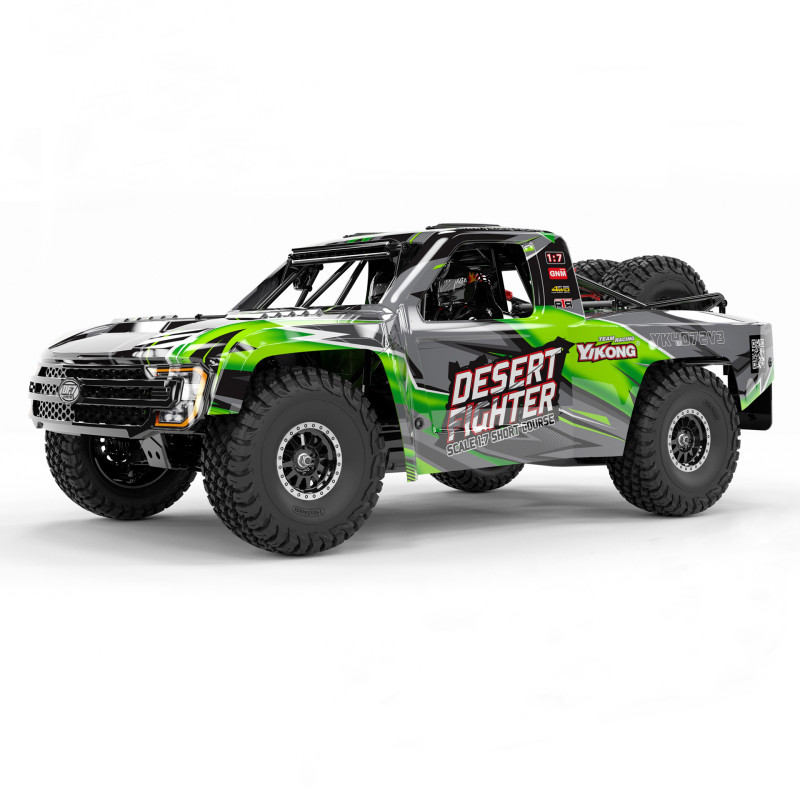

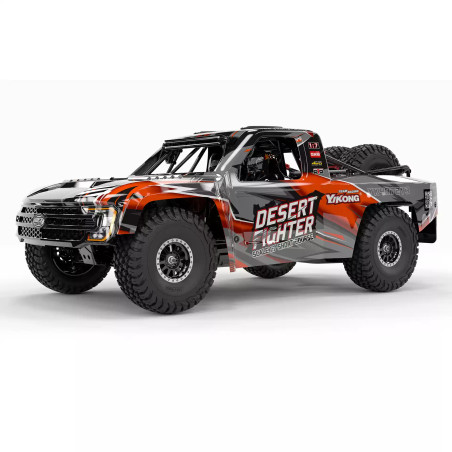

YIKONG YK4072 V3 DF7 1/7 Short-course Truck
$774.59
$739.60
Save $34.99
YIKONG's YK4072 V3 is a 1:7 scale desert short-course truck. It has a newly designed car body painting that shows speed and power. The vehicle has excellent specifications and high-end electronic configurations. There are many special designs, such as alloy center differentials and aluminum shock absorbers. It is a remote control car with strong performance and unique design.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
YIKONG YK4072 DF7 1/7 Short-course Truck
I. Product Basic Information
- Brand: YIKONG
- Model: YK4072 V3
- Name: YiKong DESERT FIGHTER (DF7 1/7 rear straight axle desert short-course truck), YIKONG 1:7 scale short-course truck.
- Scale: 1:7
- Colors: red, green

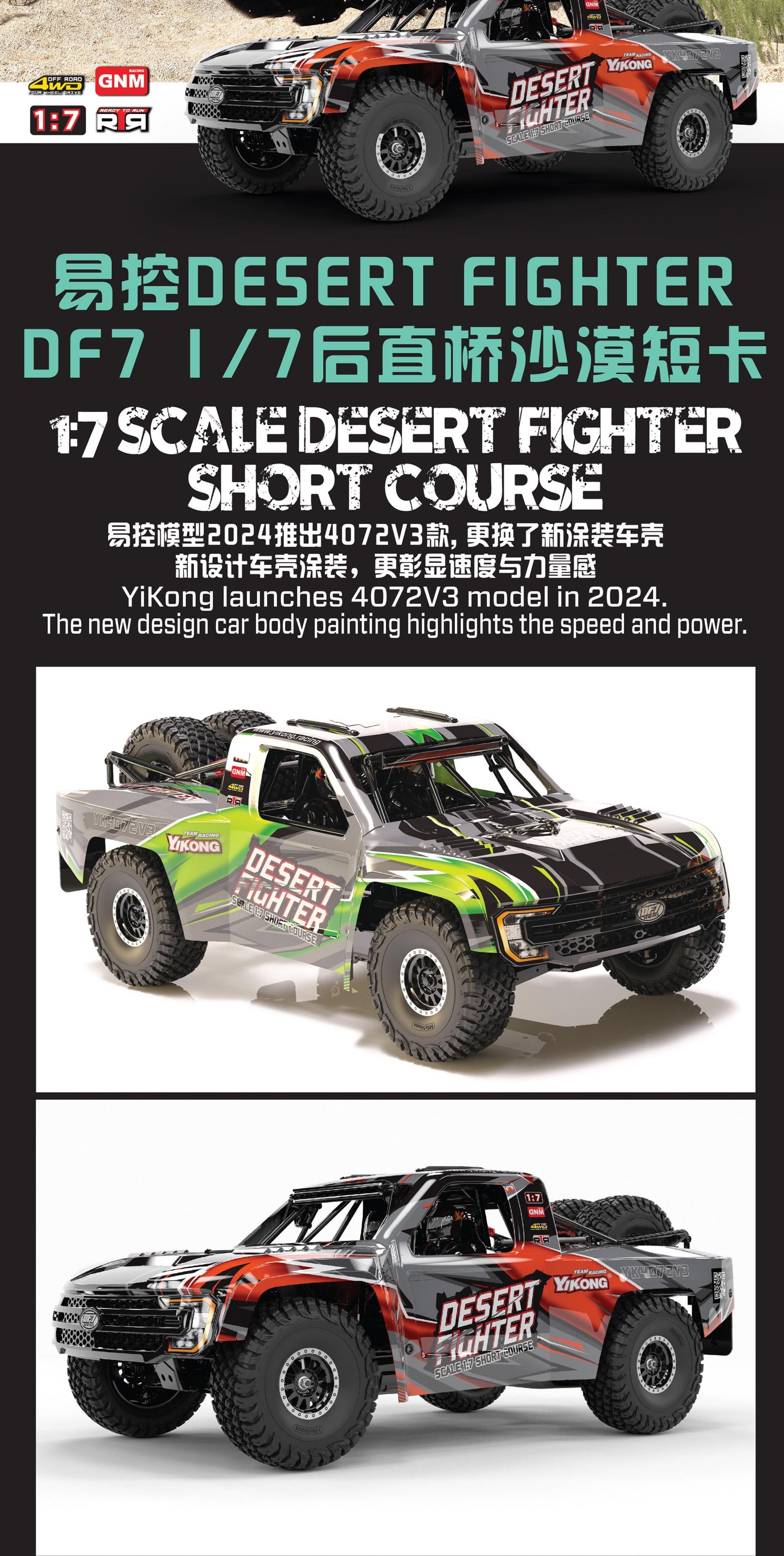

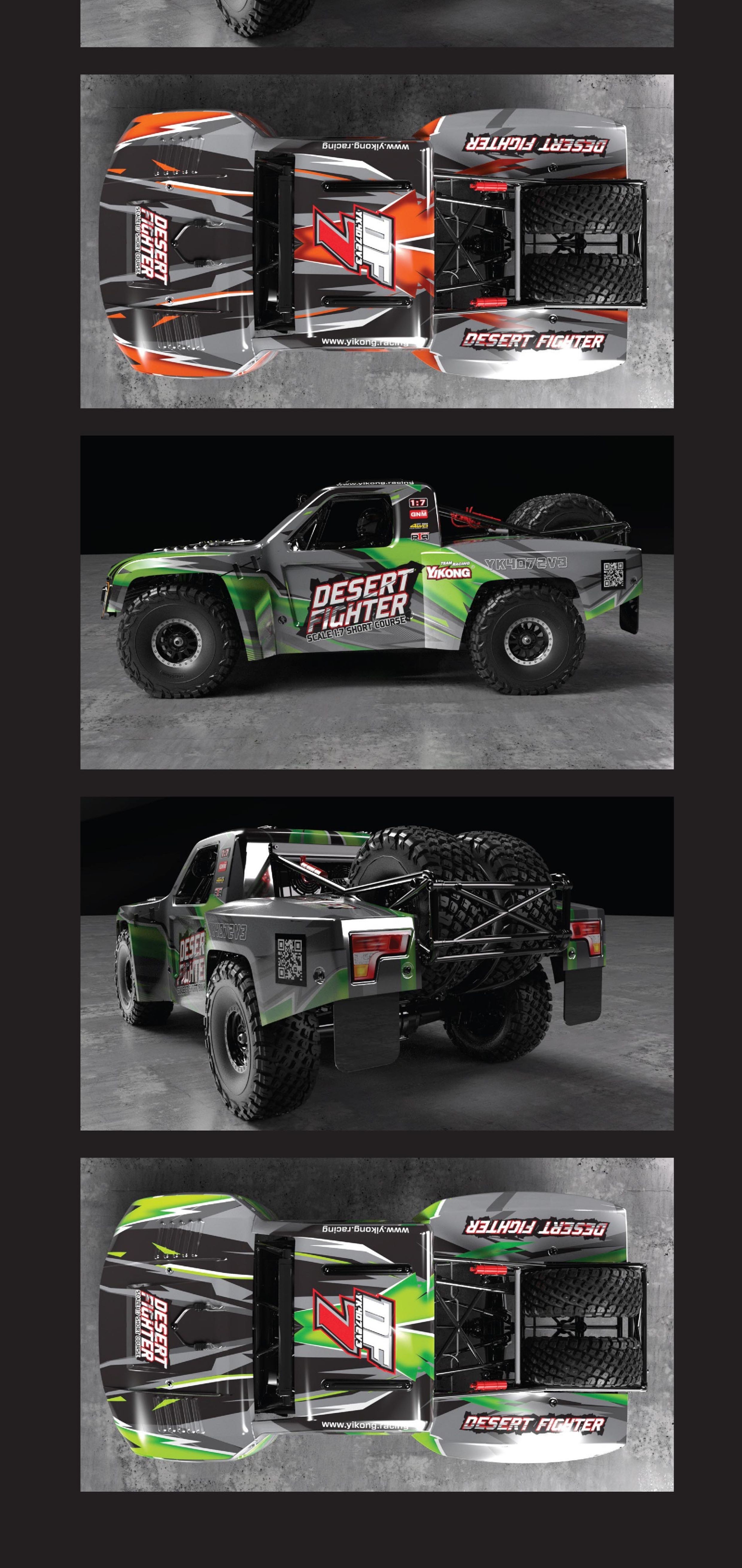

The new design car body painting highlights the speed and power.
II. Specification Parameters
- Vehicle size: 713×352×270mm
- Battery compartment size: 181×47.5mm
- Weight: 6.3 kilograms
- Wheelbase: 425mm
- Wheel and rim diameter: 135mm/54mm
- Gear ratio: Independent front suspension with a solid axle at the rear.

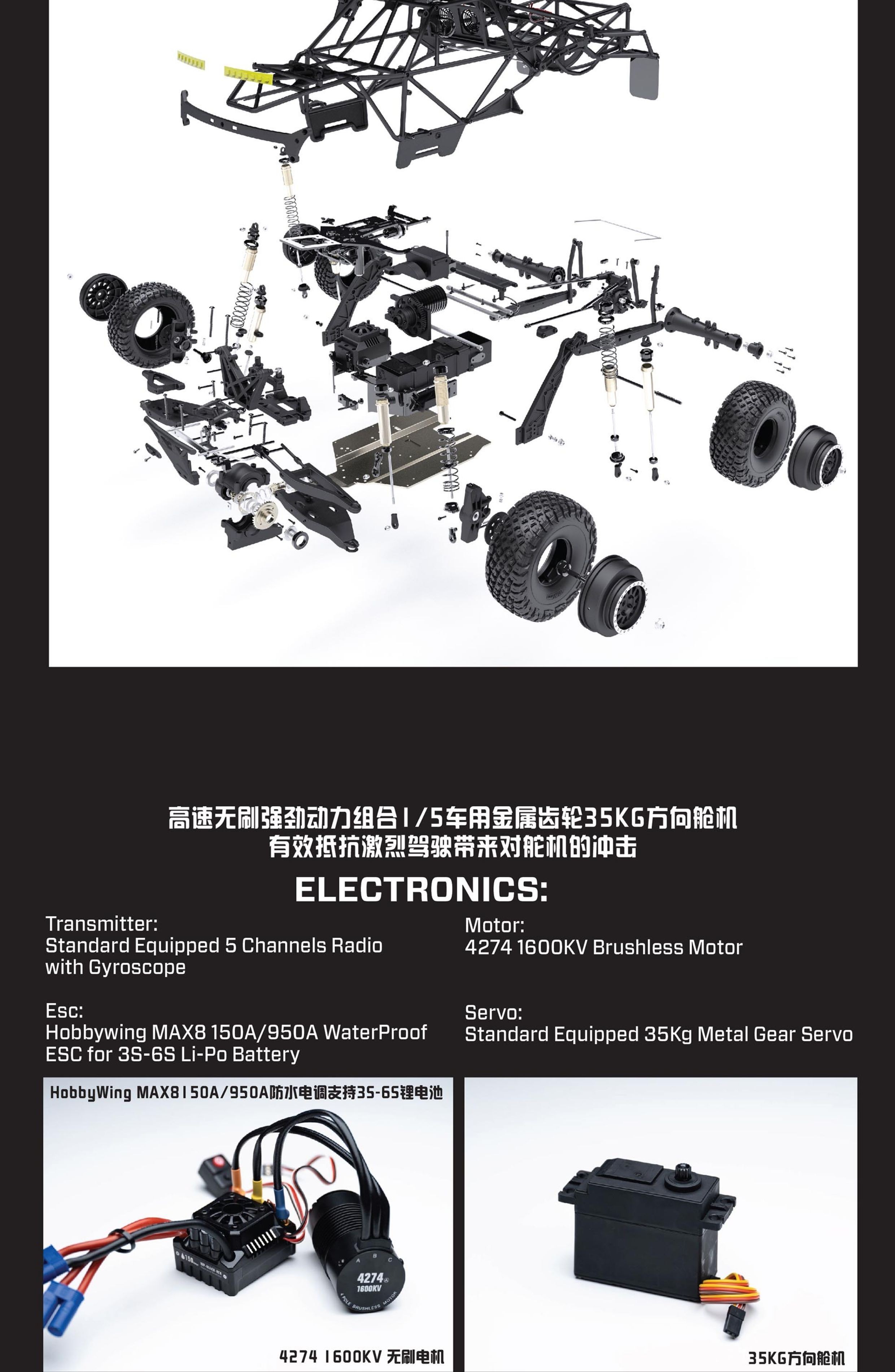

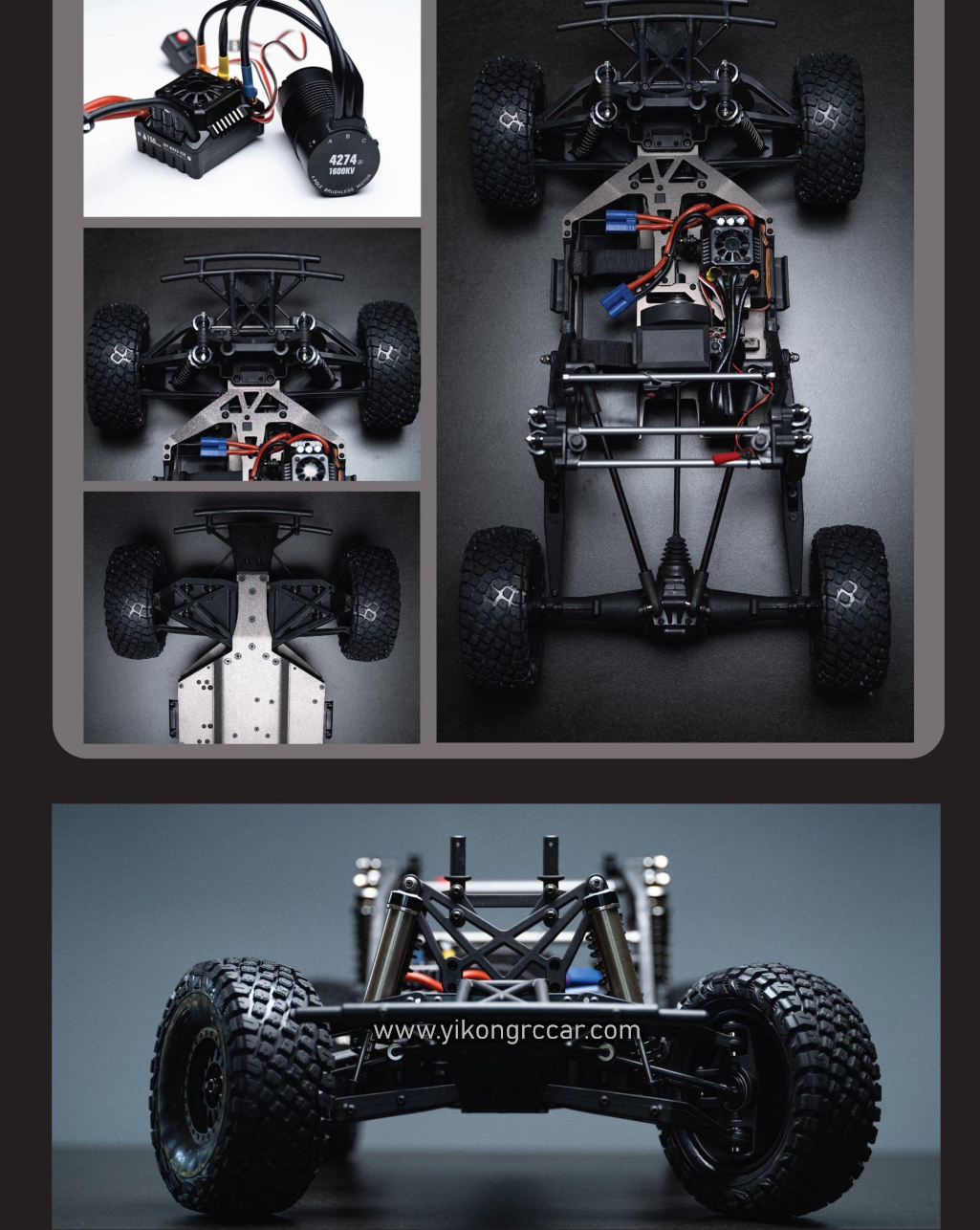

III. Electronic Configuration
- Transmitter: Standard equipped 5-channel remote controller with gyroscope.
- Motor: 4274 1600KV brushless motor.
- Electronic speed controller (ESC): Hobbywing MAX8 150A/950A waterproof ESC, supporting 3S - 6S lithium batteries.
- Servo: Standard equipped 35KG metal gear servo, effectively resisting the impact on the servo caused by intense driving.

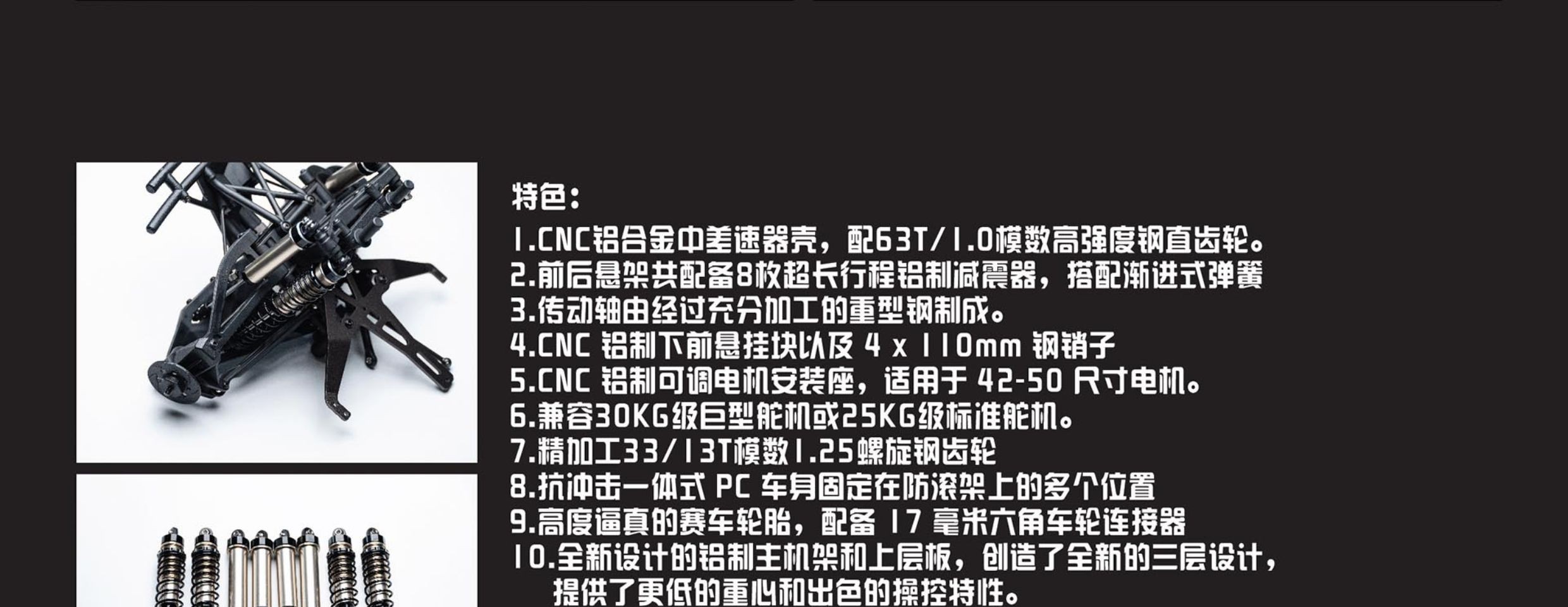

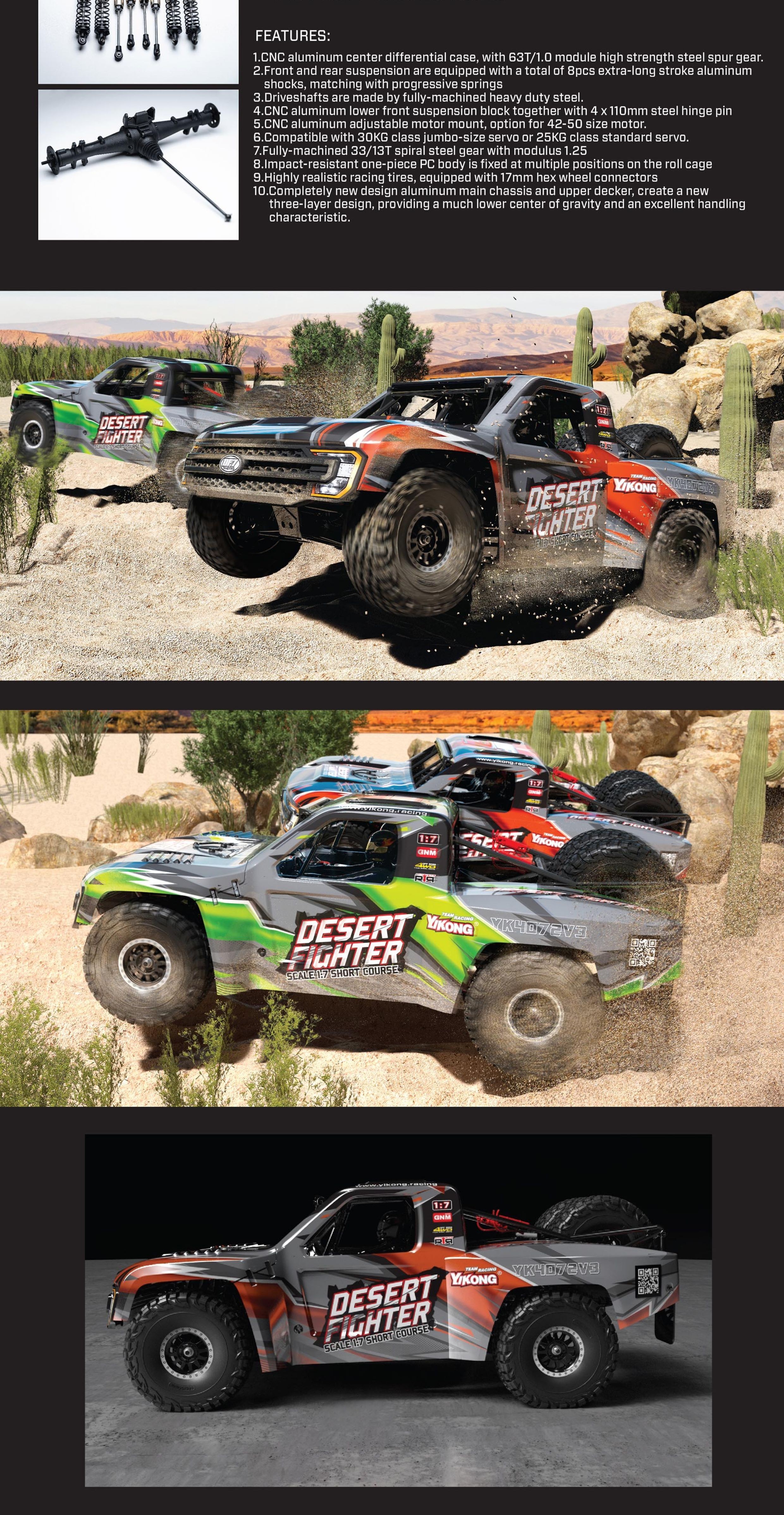

IV. Special Design
- Transmission and Gears: CNC alloy center differential case with 63T/1.0 module high-strength steel spur gear; finely machined 33/13T module 1.25 spiral steel gear.
- Suspension and Shock Absorption: Front and rear suspensions are equipped with a total of 8 extra-long stroke aluminum shock absorbers, equipped with progressive springs; CNC aluminum lower front suspension block and 4×110mm steel hinge pin.
- Motor Installation: CNC aluminum adjustable motor mount, suitable for 42 - 50 size motors.
- Compatible Servo: Compatible with 30KG class jumbo-size servo or 25KG class standard servo.

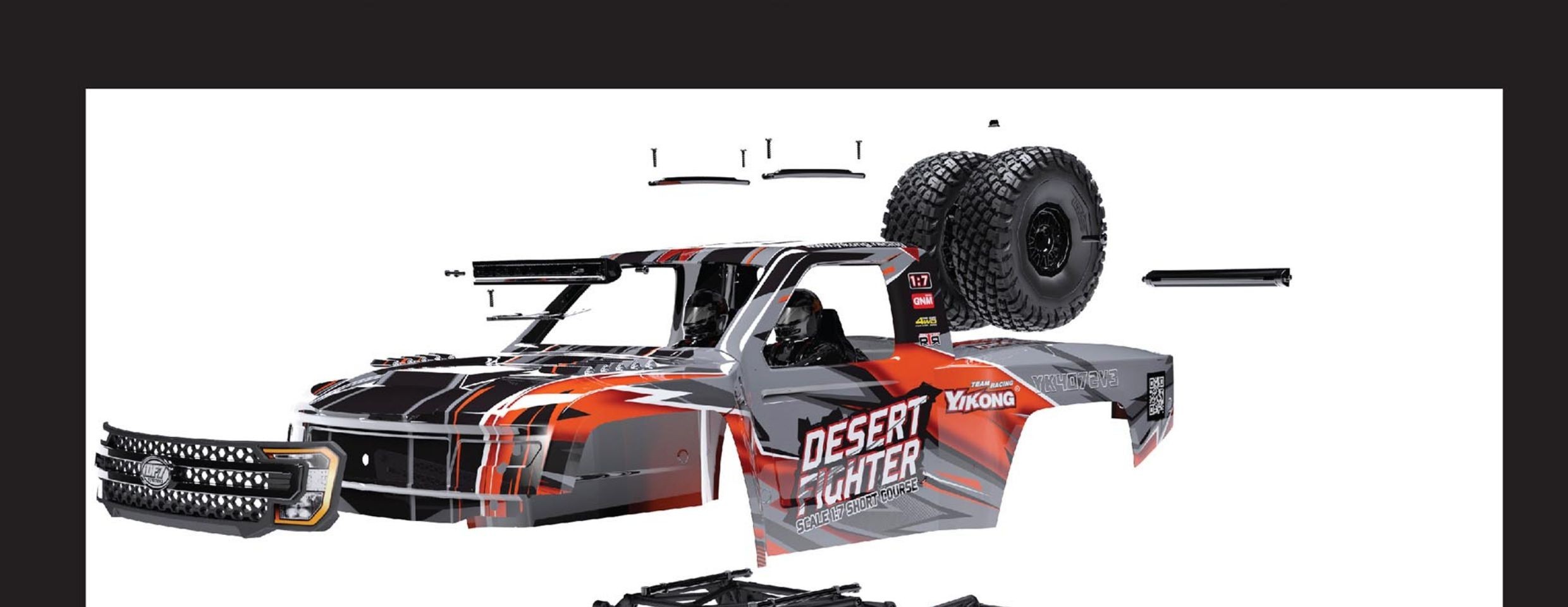

- Body: Impact-resistant one-piece PC body fixed at multiple positions on the roll cage; highly realistic racing tires, equipped with 17mm hexagonal wheel connectors.
- Chassis: The newly designed aluminum main chassis and upper deck create a completely new three-layer design, providing a lower center of gravity and excellent handling characteristics.
V. Accessories
- 1X RC Car
- 1X Manual
- 1X Screwdriver
- 1X Remote Controller
